What are eucrites?
What are they important for? |
View a list
of fine Eucrites
A few asteroids
have molten not too
long after there formation.
Eucrites are
a very interesting class
of achondrites; many finds of them are thought to have originated from Vesta.
To understand how magmas
migrated, erupted, and fractionated on these mostly smaller bodies
helps us to understand
what causes magma composition to change in
general.
Asteroids with an appr. size
of that of Vesta (appr. 500km diameter) could seriously be considered
not to have completely evolved magmatic processes. Although
these rocks experienced significant (postcrystallization) impact shock
these materials still contain important information about the
earlier stages of asteroidal and planetary
history and formation in our
solar system as well as of thermal metamorphism (Metzler et al.; Yamaguchi).
Several eucrites contain glass inclusions (tiny droplets of the molten
rock, silica polymorphs,cristobalite and/or tridymite) trapped within
mineral grains. These inclusions preserve information about magmatic
processes and other thermal history data of the material.
updated:
11/25/2009
|
|
|
|
Please click below on any underlined
meteorite title names to see more detailled descriptions |
cumulate eucrites |
Cumulate eucrites are a scientifically highly interesting meteorite
group. Cumulate eucrites are mostly coarse grained and have
usually a wide range in bulk element composition due to compositional differences
in their mineralogy. Cumulate eucrites are
basically gabbros composed of low-Ca pyroxene
and calcic plagioclase. They also usually
contain minor inclusions of silica,.troilite, phosphate, chromite, ilmenite,
free metal. Several representatives of this
group are
unbrecciated: like Binda, ALH 85001 . Unbrecciated cumulate eucrites do have
only a low percentage of Ni, with <0.5 wt % Ni in the free metal inclusions. Binda,
e.g. is a polymict breccia (Garcia, Prinz 1978) . Several polymict eucrites
display also cumulate eucrite material. The texture of unbrecciated cumulate eucrites
is equigranular with spyroxene and plagioclase grains 0.5-3
mm diameter (Hess and Henderson 1949, Lovering 1975, Mittlefehldt and
Lindstrom.)
The original igneous pyroxene of cumulate eucrites was
pigeonite, which has subsequently undergone subsolidus exsolution of augite
and, in some cases, inversion to orthopyroxene, with additional augite
exsolution. Hess and Henderson (1949) determined that original pigeonite in
Moore County had only partially inverted to orthopyroxene: They described
four pyroxenes in Moore County; low-Ca pigeonite developed from the original
igneous pigeonite by exsolution of coarse lamellae of augite, and
hypersthene developed from the low-Ca pigeonite through inversion and
exsolution of fine lamellae of pyroxene phases. Harlow et al. (1979) found
that the original igneous pigeonite in Serra de Mage had inverted to
hypersthene, with development of four types of augite exsolution during the
subsolidus cooling history. Similarly, in Moama the original igneous
pigeonite has exsolved augite and inverted to hypersthene (Lovering 1975a
Takeda et al. 1976). Binda is the most magnesian of the cumulate eucrites,
and the only one classified by Delaney et al. (1984) as an
orthopyroxene-cumulate eucrite. Takeda al. (1976) have shown that the
original pyroxene in Binda was a low-Ca pigeonite that exsolved augite and
inverted to hypersthene. Table 30 gives representative pyroxene analyses for
selected cumulate eucrites, and estimated primary pigeonite compositions are
plotted in Figure 42. As is the case for all HED meteorites, plagioclase in
cumulate eucrites is calcic is on average more calcic than that in basaltic
eucrites. Basaltic eucrite plagioclase has compositions in the range of
bytownite to anorthite, while in cumulate eucrites the plagioclase is
anorthite, An91-95;. A-881394 contains unusually calcic plagioclase, An,, {Takeda
et al. 1997b). The K2O contents of cumulate eucrite plagioclases are very
low typically <0.1 wt %.
The blue-metallic
ilmenite occurs as small grains in most cumulate eucrites . Only in Moama
ilmenite could not be found (Delaney et al. ,1984).
The composition of metal in the cumulate eucrites
Binda, Moama, Moore County has received only cursory study (Duke 1965,
Lovering 1964, 1975).
Based on modal abundances (Delaney et
al 1984) cumulate eucrites can be divided into 2 subgroups:
a) feldspathic cumulate eucrites
b) orthopyroxene cumulate eucrites
|
There is
a small but reasonable possibility that this meteorite might have originated
Mercury |
Anom. Eucrite
with Mesosiderite tendency Dho 007
Black impact
melt veins and pockets are abundant.
Thermal history: Metal phases underwent a very slow
cooling! (Yamaguchi et al)
This rare type is a cumulate eucrite,
- a monomict breccia derived from a magmaticrock having a gabbroic texture
consisting of subhedral grains of pyroxene
and plagioclase. Accessory minerals
include metal, troilite, and chromite.
Dho 007 has a variety of glass inclusions (approximately up to 10 microns in
diameter) contained in plagioclase and pyroxene grains as well
as in the form a homogeneous melt. Gas bubbles formed from shrinkage during
cooling can be found in the glass. The glass inclusions occur generally in
round shape.
Highly-silicic
glass inclusions in Dho 007 and diogenites
The glass inclusions in Dho 007 have highly silicic compositions and are
depleted in alkalis
as compared with those in other meteorites.
Although silicate melts
can be produced by low-degree partial melting of peridotites,
the resultant melts have
not highly silicic composition but only basaltic, and
contain
a high concentration of incompatible elements (Kushiro, +31/; Baker et al.,
+33/).
The
inclusions analyzed in the present study are almost pure silica and are not
very rich in
incompatible elements. Thus, these inclusions appear to be produced by
another
formation mechanism. Schiano et al. (+33/) suggest that silicic-rich glasses
in the
Earth’s upper mantle could
be generated from a very low degree of partial melting of
ma.c minerals. A
dehydrogenation of nominally anhydrous ma.c minerals by heating
or depressurization has
also been proposed as a possible formation mechanism .
However, in contrast
to the results reported here, formation of silica-rich
melts
in clinopyroxene-bearing rocks by both mechanisms should be accompanied by
enrichments of alkali and incompatible elements. In addition, a highly silicic melt
should
react with olivine during the migration of melt, so the formation
of the
present inclusions requires generation in an olivine-absent system.
A
highly silicic melt can be produced in the early stages of incongruent
melting of
clinopyroxene, as estimated from melting experiments of clinopyroxene . In
addition, the melt generated from orthopyroxene
is
expected to be lower in contents of incompatible elements than that produced
from
clinopyroxene-bearing rocks such as basalt, because of low abundances of
incompatible
elements in orthopyroxene as compared with clinopyroxene.
Therefore, our results are consistent with a silica-rich melt generated from
the incongruent melting of olivineabsent
orthopyroxenite. For Dhofar 007,
formation of the inclusions in host plagioclase
might be considered by
capturing incongruent melts of orthopyroxenite from
insights into their major
compositions. It remains unclear if the melting event that
formed these secondary
inclusions resulted from thermal heating or from shock-induced breakdown of
pyroxene.
Based on the above
evidence from these inclusions, they cannot have originated
from a late stage residual
melt on the parent body.
The occurrence of these
secondary glass inclusions, outlining healed fractures in a single crystal,
suggests migration of melts
after
the crystallization process. Although the migration of highly silicic melts
generally
is
considered to be di$cult because of high viscosity, the viscosity of the
original
melts
of the glass inclusions analyzed might have decreased because of the
enrichment
in
sulphur.
Consideration of the data reported above allows an interpretation of the
possible
petrogenesis of these glass inclusions. First, silica-rich melt penetrated
into fractures in
the
host mineral. Later annealing healed the fracture and tiny droplet glass
inclusions
remained. Then, the daughter minerals precipitated from the inclusion melt
during
cooling,
and, finally, the remaining silicic melt solidifed. By this time, the glass
inclusions were modifed to the shape of negative crystals, which were
elongated along
the
cleavage direction of the host mineral orthopyroxene.
Ref.:
Kouhei Kitazato+,, and Masanori
Kurosawa-
+
Department of Earth and
Planetary Science, University of Tokyo,
Hongo, Bunkyo-ku, Tokyo
++--**--
,
Department of Planetary
Science, Institute of Space and Astronautical Science,
Japan Aerospace
Exploration Agency, Yoshinodai, Sagamihara
,,3-2/+*
-
Institute of Geoscience,
University of Tsukuba, Tennodai, Tsukuba
-*/-2/1+
ask for fair price
erich.haiderer@chello.at
|
noncumulate eucrites |
Most noncumulate eucrites have been considered as
early crustal rocks of the HED parent body. Almost all noncumulate
eucrites are metamorphic rocks.
Eucrites have been classified into 7 metamorphic
types mainly based on the pyroxene mineralogy [1,2]. If eucrites were
metamorphosed by burial of countless lavas during crust formation, the
degree of metamorphism may be directly related to the timing of
eruption [2]. Therefore, there might be a correlation between the
degrees of metamorphism, bulk compositions, and radiometric ages
[3,4]. For geochemical study, it is essential to examine unbrecciated
eucrites or monomict eucrites since some “monomict eucrites” [5] (e.g., Pasamonte and Sioux County) have been reclassified into polymict
eucrites [6,7]. A881747. The observation of the broken surface
indicates that A881747 is mostly (~60-80%) composed of an angular subophitic lithology set in a gray matrix. The PTS displays a subophitic texture, consisting of coarse, lath-shaped plagioclase and anhedral, irregular pyroxene. The pyroxenes have a remnant Ca-zoning
with closely spaced, thick (~10 µm) augite lamellae at the rim and
sparsely sapaced (~50-100 µm in width) augite lamellae (~10 µm thick)
in the core (i.e., type 4 [1]). Chemical compositions of pyroxenes
vary from Wo4.8En35.5 to Wo41.6En30.3. Plagioclase in this rock is
compositionally zoned from An89.0Or0.59 to An78.0Or1.7, similar to
type 2 eucrites (e.g., Pasamonte clast) [6]. Analytical techniques: We
obtained aliquots of powdered samples that were originally prepared
from
et al. [2] suggested that types 5 and 6 eucrites
may have been metamorphosed at ~1000 °C for a prolonged time to
homogenize the Ca-Mg in the originally zoned pyroxenes, and those of
types 4 and 7, which have remnant Ca-zoning in pyroxenes, could be
less metamorphosed (peak metamorphic temperature <1000 °C). The
strongly recrystallized texture of eucritic granulites [2] indicates
that they may have been metamorphosed comparable to or more than types
5 and 6. Thus, we tentatively classified into the following groups:
group A (types 1- 3), B (types 4 and 7), C (types 5 and 6), and D (eucritic
granulites). Several eucrites (e.g., Ibitira and EET90020) experienced
higher temperatures. However, since the heat source of metamorphism
could have been shock-related, we excluded these eucrites from this
classification.
|
|
Millibillilli, type 6
(highly thermally equilibrated)
in the metamorphic sequence of Hiroshi Takeda
Available are wonderful individuals @$14/g, and enpieces ($16/gr) from 15
- 35gr showing nice breccias: All legally exported.
Ask for best price and let us know your wishes of sizes;
eric@mars.li |
|
Stannern, type 4
in the metamorphic sequence of Hiroshi Takeda |
|
eucrite, polymict - Dhofar 1286
18°25′579′′N, 54°25′719′′E Find: December 2005
Achondrite (eucrite,
polymict)
History: Two pieces of
meteorite weighing 898 g in total were found on a sandy surface in the
desert of Oman. The distance between the fragments was about 30 m. Joined
together, the fragments form an almost complete individual sample with ~10%
missing.
Petrography: (Lorenz, Vernad
and Brandstätter, NHMV) On the unbroken surfaces, black fusion crust is
partly preserved. The meteorite is a polymict breccia consisting of
fragments of medium- to coarse-grained metamorphosed gabbroic rocks and
fine- to medium-grained subophitic basaltic rocks. Minor equigranular
metamorphic pyroxene-feldspar rocks, melts, and melt matrix breccias are
present. The rock fragments are situated in a fine-grained clastic matrix
and comprise 60 vol% of the whole meteorite. Accessory minerals are troilite,
chromite, ilmenite, silica, Ca phosphate, and metal Fe,Ni.
Geochemistry: Pyroxene
(En35.1–62.8Wo1.8–5.7; Fe/Mn = 30) with exsolved augite
(En21.1–54.2Wo21.1–38.9).
Specimens: A 20.6 g type
specimen and one polished section are on deposit at Vernad. An anonymous
finder holds the main mass.

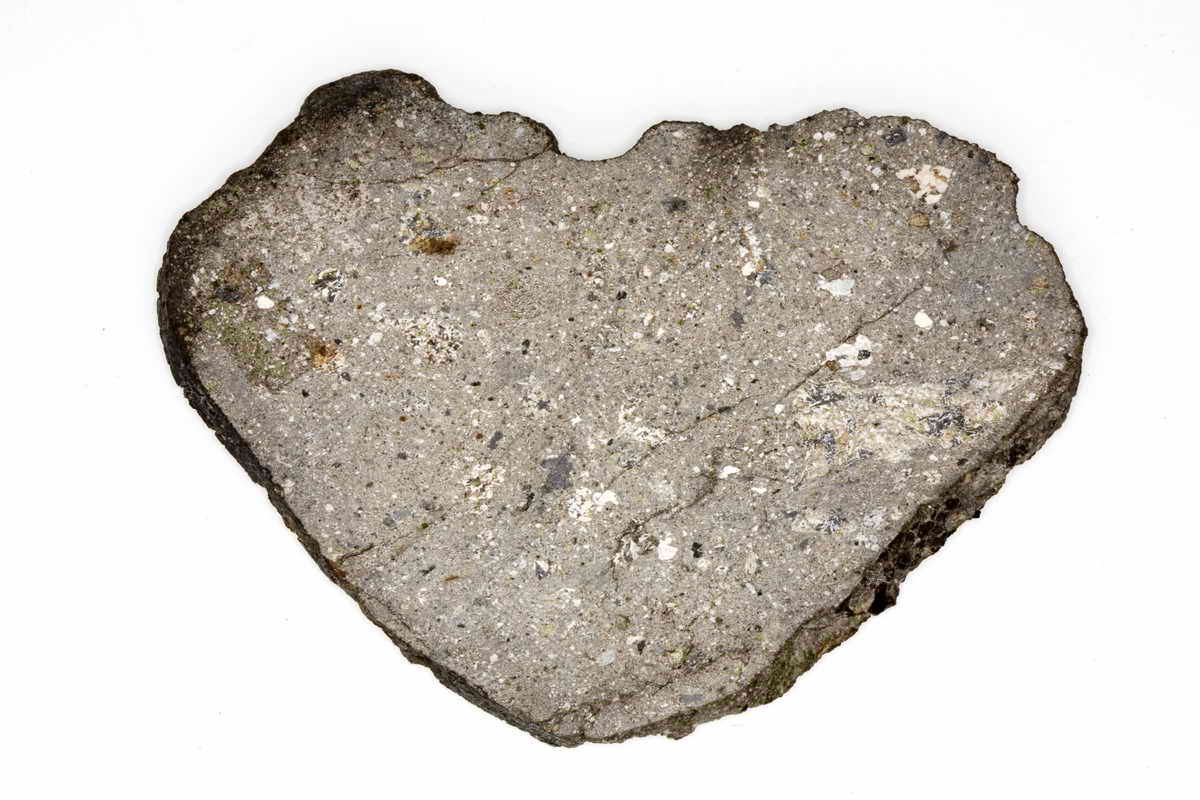

Ask for best price for the slice above and let us know your wishes of sizes;
eric@mars.li |
|
DaG 995 - very unusual eucrite,
partly cumulated, fresh like a Fall!!
Found 2001 January 3
Achondrite (eucrite)
A single stone of 56.12 g partly covered by fusion crust was found 2001 January 3 by an anonymous finder in the sand desert of Dar al Gani. Classification and mineralogy (A. Greshake and M. Kurz): has subophitic texture with plagioclase laths embedded in exsolved Ca-pyroxene, augite, and silica; several areas of the meteorite are
recrystallized; plagioclase, An89.5 (range An88.4-90.6); exsolved Ca-pyroxene with pigeonite lamellae, Fs51.8-60Wo5-15.2 and augite lamellae, Fs31-34.2Wo37.3-40.5; unexsolved augite Fs30.7Wo40.6; minor phases include orthopyroxene, ilmenite and Ti-rich chromite; plagioclase contains small crystallographically orientated inclusions of augite, pigeonite, and silica; augite
contains small plagioclase and Ti-rich chromite inclusions; the sample appears to be unbrecciated in thin section; low degree of shock; low degree of weathering. Main mass with anonymous finder; type specimen 11.6 g plus one polished thin section MNB.
0,2g sold;
1.2g slice sold;
1.231g slice
24x21mm $160; 3.67g endpiece with crust $430;
mostly with fresh sparling black crust
Available only through us!
Ask for best price and let us know your wishes of sizes;
eric@mars.li |
|
Eucrite - JaH 061
1 meteorite of 141g was found 10/2000
S2 W1 61.1 2.5 Plag: An 89-91 20g Freiburg
ultrathin slices 1g 34x25mm $70; 1.8g $115 |
|
brecciated eucrite composed of fine-grained basalt -
NWA 999
TkW: 823 g . It is a fine-grained, low-Calzium, eucrite
1 gram 12x14mm slice $60; BB $10 |
|
eucrite, polymict - NWA 1813
Occidental Sahara
One
stone of 70 g was found winter 2001/2 in Western Sahara. Mineralogy (C.
Lorenz,
Vernad): the polymict breccia consists of a number of mineral and
rock-fragments, embedded in a fine-grained clastic matrix. The lithic
clasts are coarse- to medium-grained, poikilitic and poikilo-ophitic
pyroxene-plagioclase rock clasts (~40 vol%), minor fine-grained
granoblastic pyroxene-plagioclase rock clasts (~5 vol%), melt rocks
and
breccias. Mineral chemistry: pyroxene is En37.5Wo3.1 with
lamellae of En30.5Wo42.2; feldspar is An88-92. Accessory phases are
silica, chromite, ilmenite, troilite and Fe-metal. Specimens: one
section and 14g, Vernad; main mass with anonymous finder.
ask for fair price erich.haiderer@chello.at
no
pairing - Available
only through us! |
|
Eucrite mon.- NWA 1895
3 fresh fragments with a tkW of 244g black fusion crust were found 2002 in Algeria TkW 244gr 21,2 Moderate Moderate 64,6 Mean An Mol % = 88.0, Range 85.1 - 92.2; O Oxygen isotopes: T13-14 d17O‰ = +1.873, d18O‰ = +3.890, D17O‰ = - 0.150;
beautiful thin slices with crust between 1 to 3grm :
erich.haiderer@chello.at |
|
Eucrite pm.- NWA 2906
A single stone of 18 g was found early 2002
in Western Sahara. Classification and mineralogy (A. Greshake and M.
Kurz): a polymict breccia composed of large lithic and mineral clasts set
into a fine-grained groundmass; lithic clasts are basaltic fragments and
impact melt clasts; large mineral fragments are mostly plagioclase and
exsolved Ca-pyroxene; plagioclase, An83-91.5; pyroxene, Fs29.7-58.5Wo6.5-40.3;
minor phases include orthopyroxene, silica, troilite, and ilmenite; low
degree of shock; low degree of weathering. Main mass with anonymous finder;
type specimen 3.7 g plus one polished thin section MNB.
ask for fair price
erich.haiderer@chello.at
|
|
Eucrite
- NWA2481 polymict eucrite (paired
to Howardite) with a huge variety of distinct clasts;
Several eucrites of total 5009 g were found in the Western Sahara;
Mineralogy: Pigeonite: Fs43.1-53.3Wo5.8-18.7; Plagioclas An87.5-92.3;
Classification: Dr.A.Greshake, Humboldt University, Berlin, Germany; M.Kurz,
Germany
part or complete slice, fragments or segment from $15/gr, slices 29/gr
Ask for best price and let us know your wishes of sizes;
eric@mars.li
|
|
Partly
cumulated eucrite - Northwest Africa 3075
no pairing - Available only through us!
Achondrite (eucrite);
polymict breccia with basaltic, impact melt and large
minerals clasts set into a more fine-grained matrix of plagioclase,
pigeonite with augite exsolution lamellae, and opaque phases;
some clasts show cumulate texture; plagioclase, An87(An83.4-88.2); pigeonite, Fs32.9-74.2Wo7.5-16.7; augite,
Fs64.7Wo21.6;
A single eucrite of
446 g completely covered by fusion crust was
found in 2000 by an
anonymous finder in the Western Saharan
desert.
Classification and mineralogy (A. Greshake and M. Kurz,
MNB):
minor phases
include silica, chromite, and phosphates; numerous
shock veins, strong mosaicism of pyroxene, and strong undulatory
extinction of plagioclase attest high degree of shock;
moderate
degree of
weathering. Specimens: Main mass with
anonymous finder;
type specimen 20.2 g plus one polished thin
section MNB.
0.367g thin slice appr.16x12mm $28; 3.78g slice; 6,11g complete slice
ask for fair price
erich.haiderer@chello.at
|
|
NWA XXX
- highly metamorphized eucrite
2,521g 25x24mm max. (is more
a thin endpiece) no crust €70
2,422g 24x26mm max. crust €70
11,412g 59x45mm max. some
crust €220
3,106g 40x31mm max. no crust
€76
1.606g 25x14mm max. no crust
€43 |
|
DaG 647 - unique eucrite
with 2-stage thermal history, recrystallized, fresh like a Fall!!
Ask for best price and let us know your wishes of sizes;
eric@mars.li
PTS of DaG 647
$135/gr |
|
